Product Series / RV electric roof system

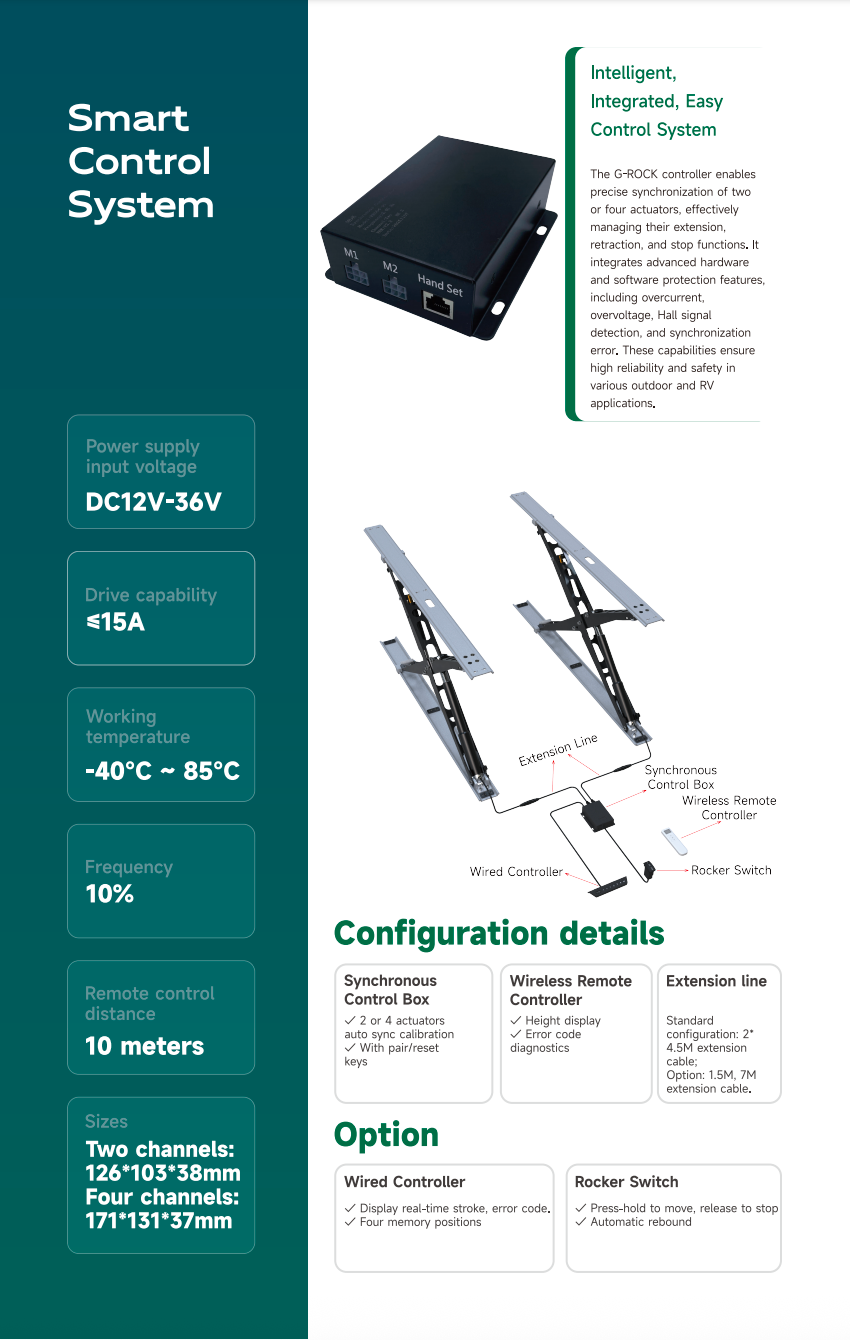

Smart Control System
The G-ROCK controller enables precise synchronization of two or four actuators, effectively managing their extension, retraction, and stop functions. It integrates advanced hardware and software protection features, including overcurrent, overvoltage, Hall signal detection, and synchronization error. These capabilities ensure high reliability and safety in various outdoor and RV applications.
Power supply input voltage: DC12V-36V
Drive capability: ≤15A
Working temperature: -40℃ ~ 85℃
Frequency: 10%
Sizes:
Two channels: 126*103*38mm
Four channels: 171*131*37mm
Synchronous Control Box
✓ 2 or 4 actuators auto sync calibration
✓ With pair/reset keys
Wireless Remote Controller
✓ Height display
✓ Error code diagnostics
Extension Line
Standard configuration: 2* 4.5M extension cable;
Option: 1.5M, 7M extension cable.
Option
Wired Controller
✓ Display real‑time stroke, error code.
✓ Four memory positions
Rocker Switch
✓ Press-hold to move, release to stop
✓ Automatic rebound
✓ 2 or 4 actuators auto sync calibration
✓ With pair/reset keys
Wireless Remote Controller
✓ Height display
✓ Error code diagnostics
Extension Line
Standard configuration: 2* 4.5M extension cable;
Option: 1.5M, 7M extension cable.
Option
Wired Controller
✓ Display real‑time stroke, error code.
✓ Four memory positions
Rocker Switch
✓ Press-hold to move, release to stop
✓ Automatic rebound
