Product Series / RV electric roof system

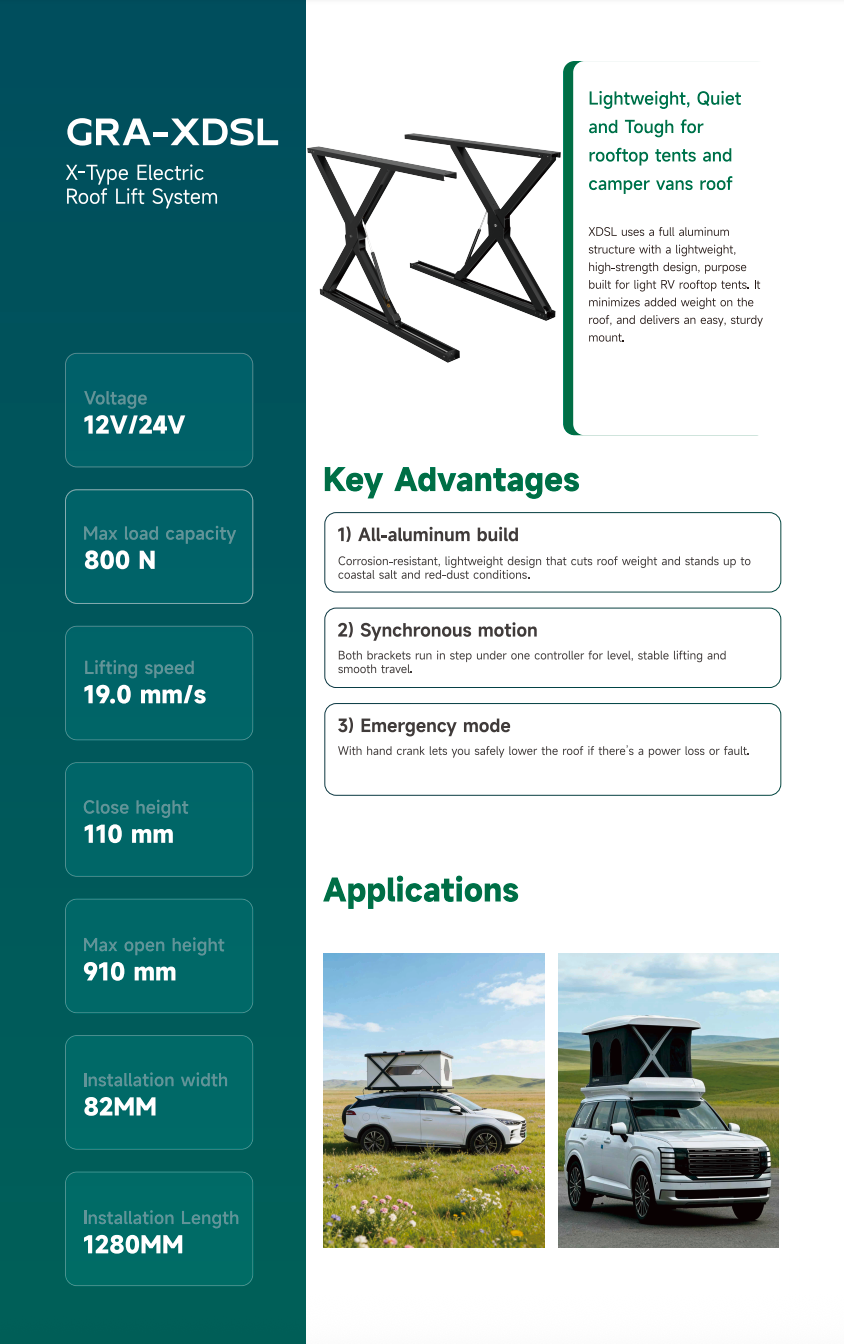

Light X‑Type Electric Roof Lift System
XDSL uses a full aluminum structure with a lightweight, high-strength design, purpose built for light RV rooftop tents. It minimizes added weight on the roof, and delivers an easy, sturdy mount.
Voltage: 12V
Max load capacity: 800 N
Lifting speed: 19.0 mm/s
Close height: 110 mm
Max open height: 910 mm
Installation width: 82MM
Installation Length: 1280MM
Ingress: IP66
1) All-aluminum build
Corrosion-resistant, lightweight design that cuts roof weight and stands up to coastal salt and red-dust conditions.
2) Synchronous motion
Both brackets run in step under one controller for level, stable lifting and smooth travel.
3) Emergency mode
With hand crank lets you safely lower the roof if there’s a power loss or fault.
Max load capacity: 800 N
Lifting speed: 19.0 mm/s
Close height: 110 mm
Max open height: 910 mm
Installation width: 82MM
Installation Length: 1280MM
Ingress: IP66
1) All-aluminum build
Corrosion-resistant, lightweight design that cuts roof weight and stands up to coastal salt and red-dust conditions.
2) Synchronous motion
Both brackets run in step under one controller for level, stable lifting and smooth travel.
3) Emergency mode
With hand crank lets you safely lower the roof if there’s a power loss or fault.
